50 SMITHSONIAN CONTRIBUTIONS TO THE EARTH SCIENCES
S-69 l

515-

Te (p)

520-

525-

530-

A B

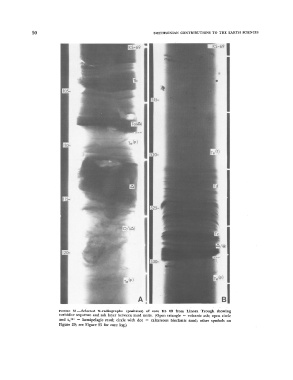

FmuP.F. 31.-Selected X-radiographs (positives) of core KS 69 from Linosa Trough showing
turbidite sequence and ash layer between mud units. (Open triangle = volcanic ash; open circle
and te <P> = hemipelagic mud; circle with dot = calcareous bioclastic sand; other symbols on
Figure 29; see Figure 35 for core log.)
